Transporting Your Printer

When relocating the printer for changing your living place, make sure of the following.

Important

  • You cannot take ink out of ink tanks.

  • Check if the tank cap is completely inserted.

  • Prepare for transporting the printer with the print head attached. This allows the printer to automatically cap the print head, thus preventing it from drying.

  • Do not remove the print head. Ink may leak.

  • If ink stains the inside of the printer, wipe them using a soft cloth dampened with water.

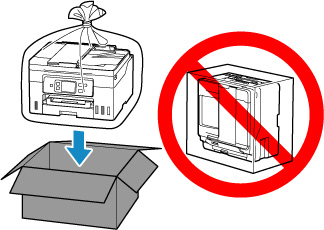

  • When transporting the printer, pack the printer in a plastic bag so that ink does not leak.

  • Pack the printer in a sturdy box so that it is placed with its bottom facing down, using sufficient protective material to ensure safe transport.

  • Do not tilt the printer. Ink may leak.

  • When a shipping agent is handling transport of the printer, have its box marked "THIS SIDE UP" to keep the printer with its bottom facing down. Mark also with "FRAGILE" or "HANDLE WITH CARE".

  • Please handle with care and ensure the box remains flat and NOT turned upside down or on its side, as the printer may be damaged and ink in the printer may leak.

  1. Select (Setup) on HOME screen.

    The setup menu screen will appear.

  2. Select Maintenance.

    The Maintenance screen will appear.

  3. Select Transport mode.

  4. Confirm the message, then select Yes.

    The mode is shifted to the transfer mode.

    When it is completed, the power is turned off automatically.

  5. Check that ON lamp is off and unplug power cord.

    Important

    • Do not unplug the printer while the ON lamp is lit or flashing, as it may cause malfunction or damage to the printer, making the printer unable to print.

  6. Retract paper output tray.

  7. Retract paper support, then close the rear tray cover.

  8. Unplug the printer cable from the computer and from the printer, then unplug the power cord from the printer.

  9. Use adhesive tape to secure all the covers on the printer to keep them from opening during transportation. Then pack the printer in the plastic bag.

    Close and seal the opening of the bag with an object such as tape so as not to leak ink.

  10. Attach the protective material to the printer when packing the printer in the box.

    Important

    • Carry the printer without putting your hands on the cassette. If you hold the cassette when carrying, the cassette may come off from the printer.
